The information in this article is based on what I have read online when researching the subject. I’m not responsible for any generators going up in flames. To be 100% sure before connecting anything, I recommend contacting Honda’s customer support.
Connect A Honda EU2000i Generator To Your 30A/50A RV
The Honda EU2200i is a very popular inverter generator, not only for RV travelers but also for homeowners that want to have a backup power source in case of a power outage.
But how do you connect one of these Honda generators to your RV? Well, it depends on which model(s) you have. Some adapters work with all of them, while some only work with one of them.
Let’s start with taking a look at the different EU2200i models and the differences between them so you can figure out which one you have and what adapter you need to connect it to your RV/camper. Then we’ll also talk about how you can parallel-connect two generators to increase the power output to be able to run an RV air conditioner.
If you’re in a hurry and just want to know which adapter works with all the EU 2200i models: This is the one for 30A RVs/trailers, and this is the one for 50A RVs/trailers. Both links will take you to a product page on Amazon.com.
Note that just because it’s a 30A or 50A adapter does not mean that the generator supports that much power output. The outlets that these adapters are plugged into can only output 15A (1800W) continuously if you use a single generator.
The Different Honda EU2200i Models
Honda EU2200i – The most basic model that has two 20A AC outlets (can only output 15A). Can be connected in parallel to another one like it, or the EU2200i Companion below to increase the power output. Can output 1800W (15A) continuously on its own.
Honda EU2200i Companion – The Companion model that has one 20A AC outlet and one 30A outlet. Can output 1800W (15A) continuously on its own. Can be parallel connected to the basic model above, or another companion.
Honda EU2200i Camo – The base EU2200i model with a different skin. The only difference is the way it looks. Can be connected to another one like it, or one of the two models above.
Honda EB2200i – Has two GFCI protected 15A AC outlets. Cannot be connected to another generator.
If you don’t know how to identify which of these models you have, take a look at the text above where the ports are located on the generator. If you have a base EU2200i model (or the camo) it only says EU2200i. The companion models say EU 2200i with a smaller “Companion 30a” text right underneath. The EB2200i and “Industrial” above the ports.
How To Connect Your RV/Trailer To A Honda Generator
So now that we know the differences, let’s take a look at the adapter(s) you need to connect a camper to your specific generator.
If you have a 30A RV
If you have one of the models above and a camper with a 30A plug, this is the adapter you need. Note that this will not be able to output more than 15A since you’re going to be using the 15A plug.

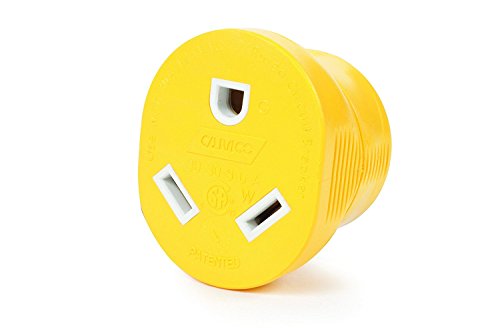

If you have a Companion model with a 30A plug, you can use one of these adapters to turn the three-prong (L5 30p) into a 30A (TT 30R). If you have one generator, you’re still limited to a max output of 15A. However, if you have two connected in parallel, the 30A outlet will be able to output 30A.
If you have a Companion model with a 30A plug and a 30A RV with a twist-lock connector, you can also use one of these cords and make a direct connection without any additional adapters.
If you have a 50A RV
If you have any of the EU2200i models, you can use this adapter to connect a 50A cord to the generator. Since the power source is a 15A outlet, it will only be able to output a maximum of 1800W (15A).

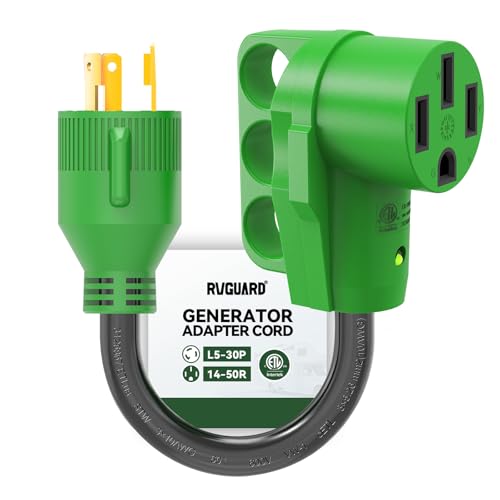

If you have either one or two Companion models, this is the adapter you can use to turn the 3 Prong 30A outlet into a 50A. If you only have one Companion, the 15A outlet will only output 1800W (15A). To get 30A out of it, you need two generators connected in parallel. That can either be a EU2200i (non-companion) and a EU2200i Companion, or two Companions.
How To Connect Two Honda Generators In Parallel
To connect two Honda generators in parallel, you need a pair of parallel cables.
Then all you have to do is connect the two generators together where it says “Parallel Operation Outlets”.
Make sure the cables are connected before you start the generators.
When two generators are connected and running, they’re going to be able to output more power.
It will still be limited by the outlet used, so don’t try to pull more than 15A/20A from a 20A receptacle, or more than 30A from a 30A receptacle.
- Two EU2000i generators are rated at 3200 watts or 26.7 amps.
- Two EU2200i generators are rated at 3600 watts or 30 amps.
- One EU2200i generator and one EU2000i are rated at 3400 watts or 28.3 amps.
Frequently Asked Questions
Can I Run An RV AC With A EU2200i?
A single EU2200i can output up to 1800W continuously, which is not enough for a 13,500 BTU or 15,000 BTU RV air conditioner.
If you connect two EU2200i in parallel, they’ll be able to output 3600W, or 30A, which is enough to run an RV air conditioner.
One way to make it possible to run an RV AC with a single generator is to use a Micro-Air EasyStart which is installed on the AC unit to soft-start the compressor and reduce the initial load.
Can I Connect A Honda EU2200i To A EU2000i?
All EU2200i models can be connected to another EU2200i or EU2200i Companion. If you have a EU2000i (either the base or the companion) you need to make sure it supports it by checking its serial number.
You can find the serial number on the side of the generator. The EU2000i models that are compatible with the EU2200i model are:
EAAJ-2017305 thru EAAJ-9999999
EACT-1000001 thru EACT-9999999
If you connect a non-supported EU2000i to a EU2200i, it might output a low voltage and damage whatever you’ve plugged into the generator.
Are The “Household” Outlets 15A or 20A?
They are 20A receptacles, so you can connect appliances with either a 15A or a 20A plug, but the generator can only output 15A unless you have connected two generators in parallel.
Can Two EU2200i Generators Output 240V?
No, connecting two Honda EU2000/EU2200i generators will not give you a 240V option.
What Kind Of Oil Is The Best For A Honda EU2200i Generator?
According to the manual, SAE 10W-30 is the recommended motor oil for general use. Like the Honda 10W-30.
Make sure it’s a 4-stroke automotive detergent oil.
If you have any questions or believe some important information is missing from the article, please leave a comment down below.
