Disclaimer: OptiSolex sent this product to us for free for a review. That does not affect our opinion about the product. In this article, we list both what we like and dislike. Read more about this here.
OptiSolex 440W Portable SolarBag Kit Overview
When OptiSolex reached out about reviewing their 440W portable solar panel, I jumped at the chance. You don’t see many portable panels over 400 watts, so I was curious to see how it would perform.
What caught my attention right away was that you can split this thing into two separate 220W panels. That’s pretty cool, since you can bring just one panel for lighter trips or use both when you need maximum power.
Also available on Amazon.com (43% off until Sept 28th, 2025)
This kit is basically two identical 220W panels that zip together. Each panel has its own connectors and even USB ports. The only difference is that one panel has a slightly bigger pocket for storing stuff.
Here are the specs that matter:
| SolarBag 400 (the two panels connected in series) | SolarBag 400 (each panel) | |
| Max Power | 440W | 220W |
| Optimum Operating Voltage | 36V | 18V |
| Optimum Operating Current | 11.1A | 11.1A |
| Open-Circuit Voltage | 42V | 21V |
| Short-Circuit Current | 11.8A | 11.8A |
| Weight | 7.8kg/17.19 lbs | 3.9kg/8.6 lbs |
| Dimensions Folded | 53.5 x 43.5 x 11.5 cm (21.06 x 17.16 x 4.53 in) | 53.5 x 43.5 x 5.5 cm (21.06 x 17.16 x 2.17 in) |
| Dimensions Unfolded | 168.5 x 157 x 3.3 cm (66.34 x 61.81 x 1.3 in) | 84.3 x 157 x 3.3 cm (33.19 x 61.81 x 1.3 in) |
The connectors used are MC4, which is the most commonly used connector on solar panels. These wires are connected to the junction box, which is where the USB ports are located.
Since OptiSolex opted for MC4 connectors, you can configure the panels together in several ways. Parallel and series being the most common. When connected in series, the voltage doubles to 36–42V, making it compatible with many large power stations. A parallel connection doubles the amperage, but keeps the voltage the same (18V).
Read this article to learn more about connecting solar panels together.
If the charge controller in your power station does not accept voltages above 30V, for example, you can wire the two panels together in parallel with an MC4 Y branch. If you do this, you need to make sure all the wiring can handle the total amperage of the panels combined.
Both solar panels have one USB-C port (up to 45W PD) and two USB-A ports (up to 18W). This means you can directly charge multiple devices like smartphones, tablets, or small laptops without needing a power station.
OptiSolex also makes a solar charge controller for 12V batteries, the OptiSolex SolexBrick S1. It’s a portable charge controller that fits in the pocket of the solar panel, so it’s easy to bring and a way to expand the functionality of the panel. While I didn’t test it for this review, it provides an additional way to use the SolarBag kit for off-grid setups.
Design, Build Quality, and Portability

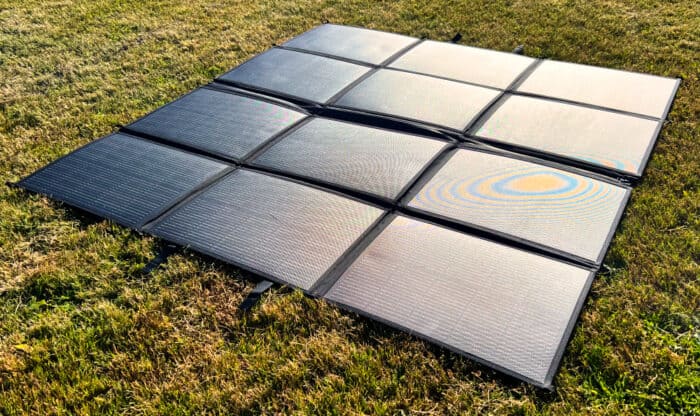

This is where the OptiSolex really shines, it’s incredibly portable. Each panel folds into six sections with fabric hinges, kind of like those old folding maps. They’re surprisingly light but feel sturdy enough for camping.
Because they’re fabric-backed, they show dirt and water spots more than glass panels. That’s common with panels like these that mainly focus on portability.
They zip together for carrying, and both the full kit and individual panels have good handles. You also get shoulder straps and carabiners to hang them from your RV or tent, which is handy since there’s no built-in stand.
The shoulder straps can easily be hooked up to the panel and let you either carry the panel like a backpack, or on your shoulder.
Real World Charging Performance and Efficiency
I tested the panel in early September in Sweden (62°N latitude) at around 1 p.m. The conditions included a mix of sun and clouds, so it was a great day to test a solar panel. The temperature outside was 59°F (15°C).
I connected the panels in series by linking the red positive MC4 from one panel to the black negative MC4 on the other. The remaining cables were attached to an MC4 to 8mm adapter, which plugged into the Jackery Explorer 2000 Pro.
Here are the test results:
- Sunny, flat: 301W
- Sunny, tilted 45°: 377W
- Slight overcast, flat: 165W
- Slight overcast, tilted 45°: 264W
- Cloudy, flat: 78W
- Cloudy, tilted 45°: 139W
Overall, the panels performed well, and their output would likely be even higher on a clear summer day when the sun is higher in the sky.
The USB ports worked great too. I could charge my phone and laptop while the panels were also feeding my power station.
Using the SolarBag Kit with Power Stations and 12V Batteries
Since the kit doesn’t include MC4 to DC connectors, you will need to purchase an adapter specific to your power station’s input type. Brands like Jackery, EcoFlow, Bluetti, and Goal Zero all use different connectors, so it’s important to use the correct adapter.
Search for your power station brand on our site and you should find an article that will help you find the correct adapter.
With the right adapter, the SolarBag 400 works with most portable power stations, including Jackery, EcoFlow, and Bluetti. Its ability to connect in series or parallel makes it compatible with models that accept both 12–30V and 30–60V inputs. Note that an MC4 Y branch is required for a parallel connection.
For battery charging, OptiSolex SolexBrick S1 charge controller allows direct connection to 12V systems. As mentioned above, I didn’t test this controller, but it would make the kit useful for RVs, boats, and small off-grid cabins.
Advantages of the OptiSolex 440W Portable Solar Panel
The portability is unbeatable. At 17 pounds for 440W, it’s way lighter than other panels this powerful. The EcoFlow 400W panel weighs almost twice as much, although that panel has a built-in stand.
Being able to split it into two panels is genius. Sometimes I need only one panel for a weekend trip, so I can leave the other half at home. Or I can set them up in different spots to avoid shadows.
Having USB ports on both panels is awesome too. I don’t need to check which panel is which, and can use either to charge my USB devices. The 45W USB C PD port is especially useful, since most new phones, tablets, and even laptops can charge with USB C.
I confirmed with my MacBook Pro laptop that it’s capable of 45W via USB C.
Drawbacks to Consider Before Buying
The lack of a built-in stand is the biggest downside. Positioning solar panels at the best angle is critical for maximizing efficiency, and without an integrated solution you’ll need to improvise with straps, props, or nearby surfaces. While hanging the panels is possible with the included carabiners, it’s not always practical in every environment.
Another downside is the absence of included DC adapters. Unless your power station included an MC4 to DC adapter, you’re going to have to buy one.
I would have preferred slightly longer cables on both panels, as this would make connecting and disconnecting them more convenient.
Final Thoughts on the OptiSolex 440W Solar Panel
The OptiSolex 440W SolarBag Kit is great for campers, van lifers, and travelers who want a balance between portability and power. Its lightweight design makes it easier to handle than almost any other panel in this size range, while its modular setup opens up more charging possibilities than a standard fixed 400W panel.
One thing to keep in mind is that panels above 400W are best paired with larger power stations or battery banks that can handle higher voltage input. Smaller power stations may require parallel connections instead of series, which slightly reduces efficiency but broadens compatibility.
However, since it can be used as a single or two 220W panels, it’s a great choice for smaller power stations as well.
The fabric backing means you’ll need to clean it more than glass panels, but that’s a fair trade-off for the weight savings.
Overall, it’s one of the most portable high-wattage panels you can buy. Once you figure out how to set it up for your specific needs, it delivers reliable power and beats almost everything else for portability.
I will do more tests and update the review in the future if needed.
